Exited products

Ex9EVD3 is a wall-mounted charger for electric vehicles (EVs) with intentions to be used in a household. Our solution is equipped with B type Residual Current Circuit Breaker, which is a neccessery protection of EV chargers. The battery of EV is working on DC principe and it can occur a DC current leakage. The internal B type RCCB is able to detect leakages in DC, AC and pulsating current in a high frequency. We are off ering a chargers with charging current up to 32 A in 3 phase connection. Cable with T2 connection is a part of delivery (valid for T2C 16A and T2C 32A version). For T2S 16A and T2S 32A cable is not include package. Output is able to use also as 1 phase. The purpose of DLB module is to ensure that the maximum permitted current of the main circuit breaker is not exceeded by the simultaneous operation of the EV charging station and other appliances in the building. Communication with the wallbox is implemented via the RS 485 interface (2 wires). DLB module can be ordered separately.

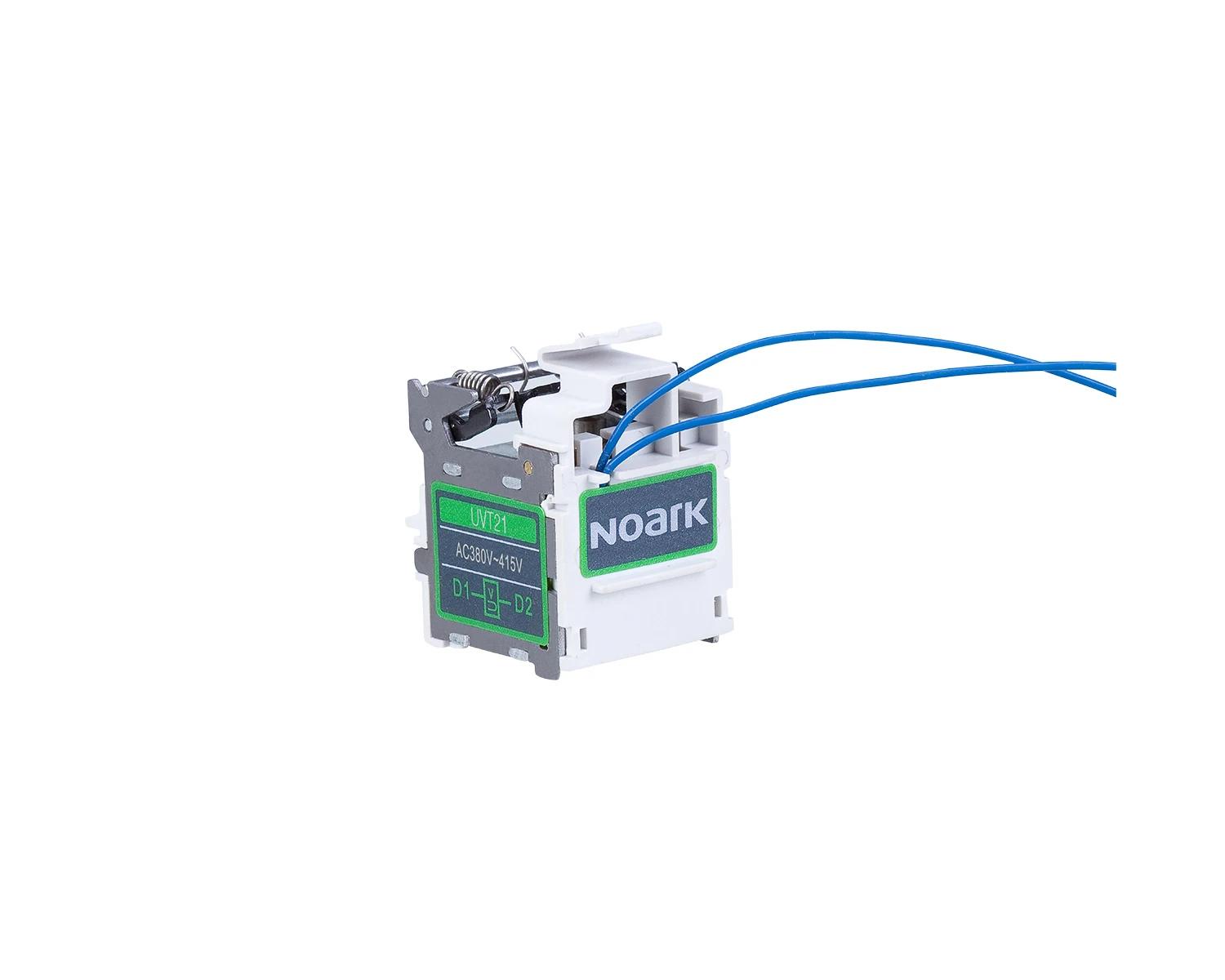

UVT22 DC48V EU

UVT21 DC48V EU

DIN-rail mounted power supplies Ex9PS provide a convenient solution for powering DC operated devices like bells, videophones, vending machines, security systems, etc. Since these power supplies are air convection cooled, no cooling fans are needed. Output voltages from these supplies range from 5 V up to 24 V DC with power ratings from 8 W up to 100 W.

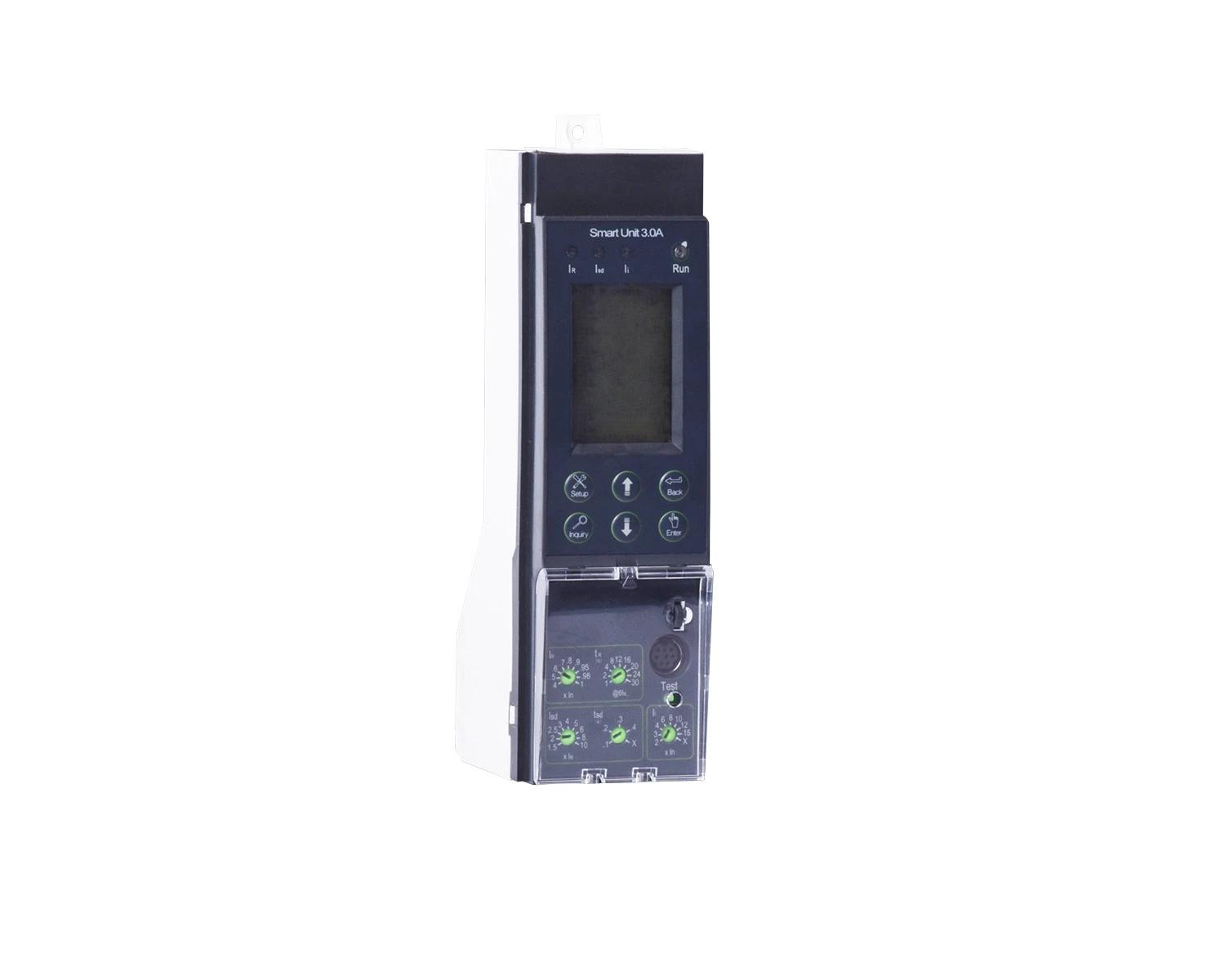

Tripping unit SU3.0, variant A, LSI protection with analysis of currents, 230 V AC

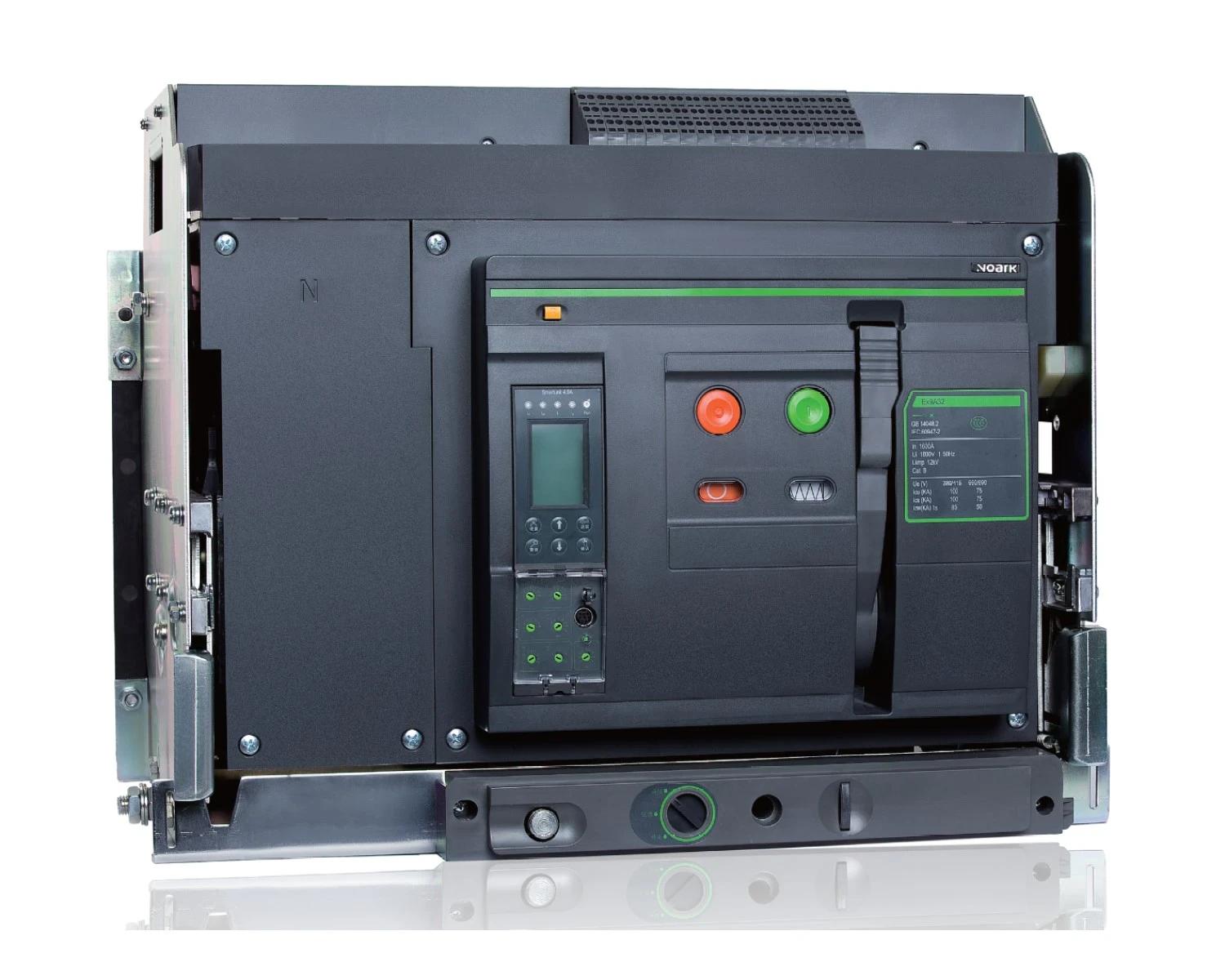

The new line Ex9A offers very complex functional devices range. They provide not only the basic function of circuit breakers or switch disconnectors, but also a complete networks analysis with the ability to communicate with advanced control systems, alarm function and power switching relays. The circuit breakers and switch disconnectors are available in three frame sizes as fixed and withdrawable version of 3P and 4P devices. Circuit breakers Ex9A use digital tripping units SU. Their basic common characteristic is the presence of complete protection functions LSI, LCD display and 32-bit DPS even in the most basic variant SU3.0. Units SU4.0 and SU5.0 provide extra protective functions G for protection against ground faults or E for detection of low-level residual currents, respectively. In addition to comprehensive protective functions circuit breakers Ex9A offers a wide range of circuit variables measurement and analysis. Obtained information can be used to activate the breaker, alarm or for processing by the operator or in advanced control system. As in the case of protective function in tripping units, also the basic configuration of mechanical part includes generally used or recommended components. The customer will automatically receive the device with the main terminals, with a complete set of secondary terminals, the circuit breaker will contain alarm contacts or in the case of withdrawable version the cassette will be fitted with safety shutters of the main terminals. For devices Ex9A there is available a wide package of internal and external accessories.

The new line Ex9A offers very complex functional devices range. They provide not only the basic function of circuit breakers or switch disconnectors, but also a complete networks analysis with the ability to communicate with advanced control systems, alarm function and power switching relays. The circuit breakers and switch disconnectors are available in three frame sizes as fixed and withdrawable version of 3P and 4P devices. Circuit breakers Ex9A use digital tripping units SU. Their basic common characteristic is the presence of complete protection functions LSI, LCD display and 32-bit DPS even in the most basic variant SU3.0. Units SU4.0 and SU5.0 provide extra protective functions G for protection against ground faults or E for detection of low-level residual currents, respectively. In addition to comprehensive protective functions circuit breakers Ex9A offers a wide range of circuit variables measurement and analysis. Obtained information can be used to activate the breaker, alarm or for processing by the operator or in advanced control system. As in the case of protective function in tripping units, also the basic configuration of mechanical part includes generally used or recommended components. The customer will automatically receive the device with the main terminals, with a complete set of secondary terminals, the circuit breaker will contain alarm contacts or in the case of withdrawable version the cassette will be fitted with safety shutters of the main terminals. For devices Ex9A there is available a wide package of internal and external accessories.

The new line Ex9A offers very complex functional devices range. They provide not only the basic function of circuit breakers or switch disconnectors, but also a complete networks analysis with the ability to communicate with advanced control systems, alarm function and power switching relays. The circuit breakers and switch disconnectors are available in three frame sizes as fixed and withdrawable version of 3P and 4P devices. Circuit breakers Ex9A use digital tripping units SU. Their basic common characteristic is the presence of complete protection functions LSI, LCD display and 32-bit DPS even in the most basic variant SU3.0. Units SU4.0 and SU5.0 provide extra protective functions G for protection against ground faults or E for detection of low-level residual currents, respectively. In addition to comprehensive protective functions circuit breakers Ex9A offers a wide range of circuit variables measurement and analysis. Obtained information can be used to activate the breaker, alarm or for processing by the operator or in advanced control system. As in the case of protective function in tripping units, also the basic configuration of mechanical part includes generally used or recommended components. The customer will automatically receive the device with the main terminals, with a complete set of secondary terminals, the circuit breaker will contain alarm contacts or in the case of withdrawable version the cassette will be fitted with safety shutters of the main terminals. For devices Ex9A there is available a wide package of internal and external accessories.

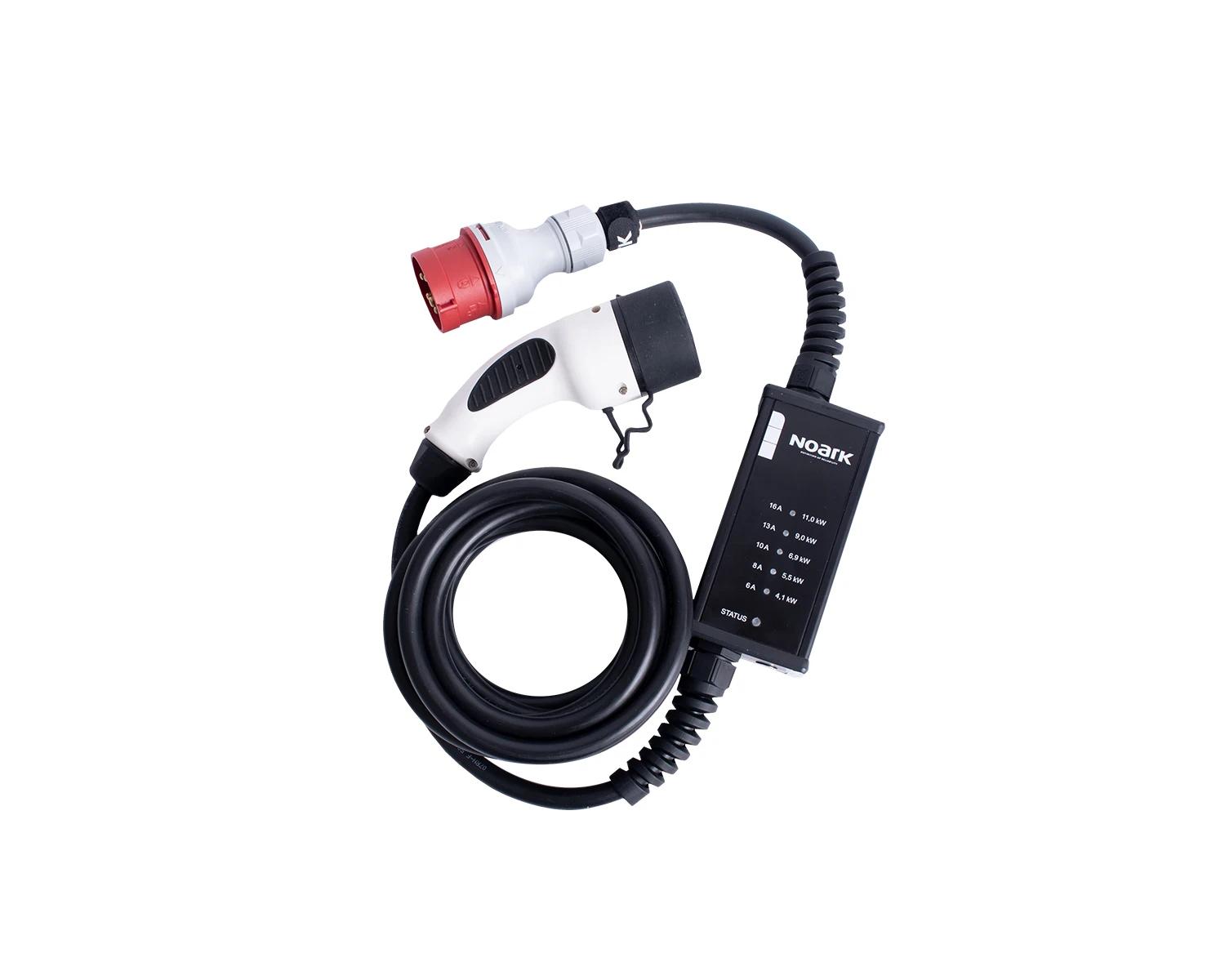

EV charging cable Ex9EVC is a mobile solution for charging your EV (electric vehicle). It can be used as a complementary charger or replace the main charger if you don‘t want to have a wall-box installed in your facility. All you need is a grid plug. Charging current can be set before start charging so you can configure charging time and control the energy consumption. Charging cables provide all necessary protection as temperature, overvoltage and undervoltage monitoring, checking the ground and neutral wires connection and electronic status before starting charging. The battery of EV is working on DC principe and it can occur a DC current leakage. The integrated B type RCCB is able to detect leakages in DC, AC and pulsating current in a high frequency. All versions of cable chargers Ex9EVC are provided in 5 m length with one of the two most common plugs at the EV connection side - Type 1 and Type 2. Grid plug is depended on a number of phases and maximal charging current.

EV charging cable Ex9EVC is a mobile solution for charging your EV (electric vehicle). It can be used as a complementary charger or replace the main charger if you don‘t want to have a wall-box installed in your facility. All you need is a grid plug. Charging current can be set before start charging so you can configure charging time and control the energy consumption. Charging cables provide all necessary protection as temperature, overvoltage and undervoltage monitoring, checking the ground and neutral wires connection and electronic status before starting charging. The battery of EV is working on DC principe and it can occur a DC current leakage. The integrated B type RCCB is able to detect leakages in DC, AC and pulsating current in a high frequency. All versions of cable chargers Ex9EVC are provided in 5 m length with one of the two most common plugs at the EV connection side - Type 1 and Type 2. Grid plug is depended on a number of phases and maximal charging current.

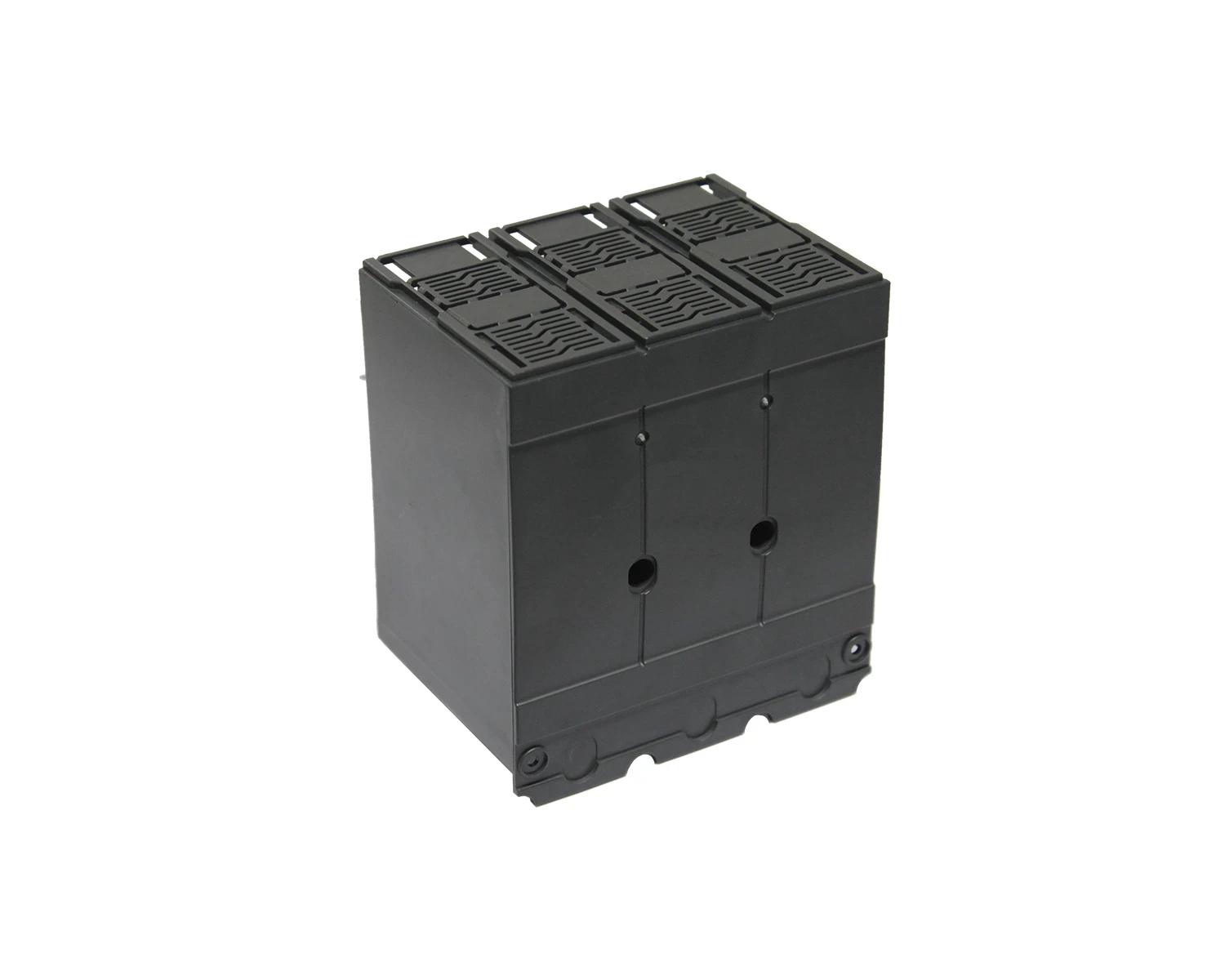

Terminal cover for 3-poles frame size M3, long

Phase barriers set for 4-poles frame size M4 and M6

Phase barriers set for 3-poles frame size M4 and M5

Phase barriers set for 3-poles frame size M1

Shunt trip release, 24V AC
