PXF groepenkasten zijn geschikt voor inbouw in woningbouwinstallaties. Standaard meegeleverd: behuizing, deur, DIN-rails, N- en PE-klemmenblok, frontafdekking met module-uitsparing, blinde afdekplaat en montagemateriaal.

Datasheet PXF

Mounting instruction PXF

EU Declaration of conformity PXF

Catalogue Consumer units

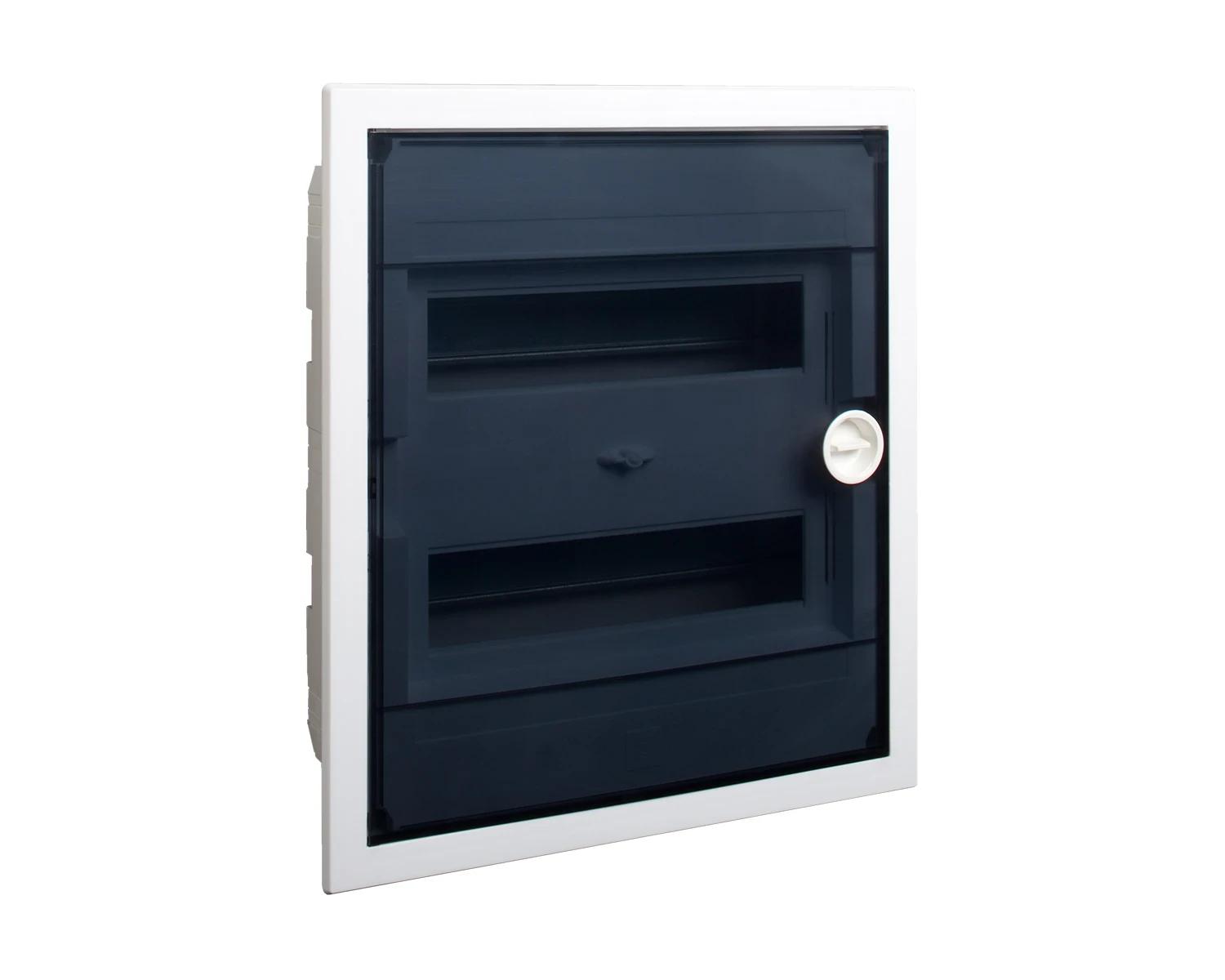

Groepenkast PXF 24T

Mounting method

Number of rows

Width in number of modular spacings

Type of cover

Cover model

Transparent cover/door

Material housing

Height [mm]

Width [mm]

Depth [mm]

Built-in depth [mm]

DIN-rail

With mounting plate

Extension possible

EMC-version

Colour

RAL-number

Degree of protection (IP)

With lock

Thermal dissipation (Delta T = 20 K) according to IEC/TR 60890 [W]

Mounting method	Flush mounted (plaster)
Number of rows	2
Width in number of modular spacings	12
Type of cover	Door
Cover model	Closed
Transparent cover/door	Yes
Material housing	Plastic
Height [mm]	368
Width [mm]	330
Depth [mm]	88
Built-in depth [mm]	88
DIN-rail	Yes
With mounting plate	No
Extension possible	No
EMC-version	No
Colour	White
RAL-number	9003
Degree of protection (IP)	IP40
With lock	No
Thermal dissipation (Delta T = 20 K) according to IEC/TR 60890 [W]	69
