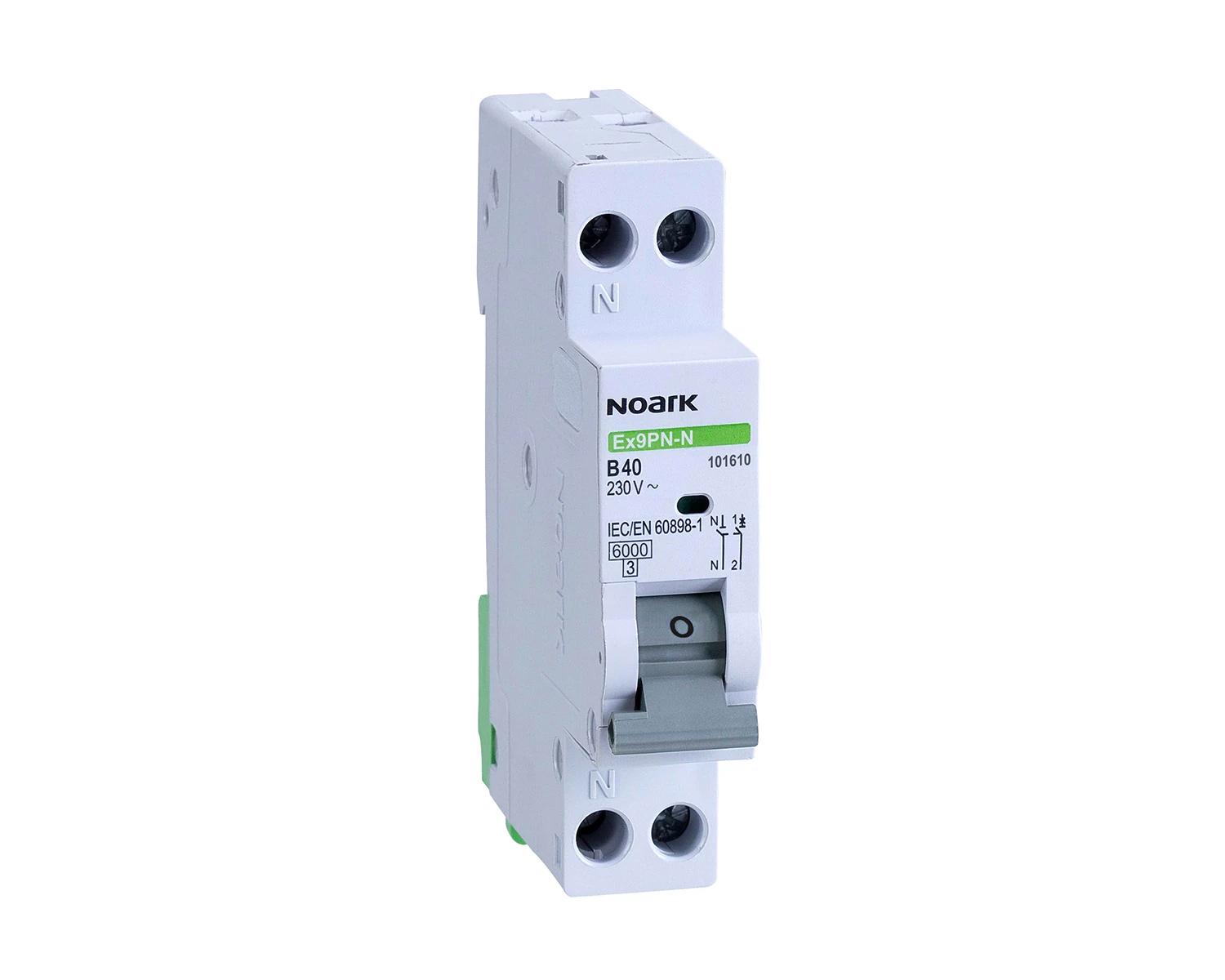

Automatski prekidači- osigurači Ex9PN-N 1PN B16
101606
8592765016072
Ex9PN osigurači su specijalna izvedba 1P+N prekidača širine od jednog modula. Proizvode se za nominalne struje do 40A, karakteristike B i C. U odnosu na standardne prekidače- osigurače mogu da uštede polovinu prostora u spratnoj tabli.
| Release characteristic | B |
| Number of poles (total) | 2 |
| Number of protected poles | 1 |
| Nominal rated current [A] | 16 |
| Nominal rated voltage [V] | 230 |
| Rated short-circuit breaking capacity Icn EN 60898 at 230 V [kA] | 6 |
| Rated short-circuit breaking capacity Icn EN 60898 at 400 V | 6 |
| Voltage type | AC |
| Current limiting class | 3 |
| Frequency [Hz] | 50-60 |
| Concurrently switching N-neutral | Yes |
| Over voltage category | 3 |
| Pollution degree | 2 |
| Width in number of modular spacings | 1 |
| Built-in depth [mm] | 74 |
| Additional equipment possible | Yes |
| Degree of protection (IP) | IP20 |
| Power loss [W] | 3.2 |
