Consumer units PNF-MM are intended mainly for domestic applications. Their design is suitable for flush mounting. Scope of delivery consists of enclosure, door, mounting plate, mounting material.

Datasheet PNF-MM

Mounting instruction PNF-MM

EU Declaration of conformity PNF-MM

Catalogue Consumer units

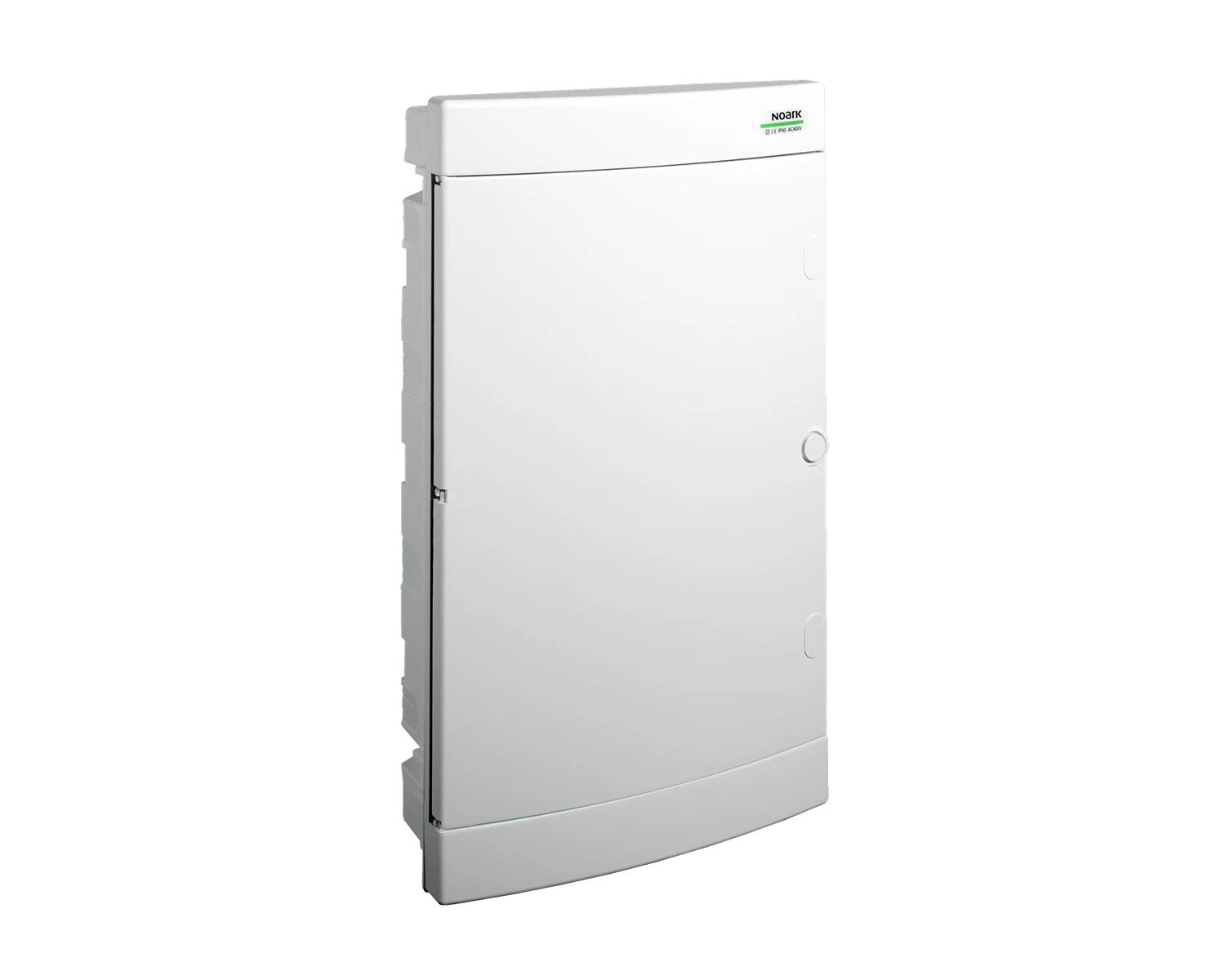

Consumer unit for IT equipment PNF-MM 24W

Mounting method

Number of rows

Width in number of modular spacings

Type of cover

Cover model

Transparent cover/door

Material housing

Height [mm]

Width [mm]

Depth [mm]

Built-in depth [mm]

DIN-rail

With mounting plate

Extension possible

EMC-version

Colour

RAL-number

Degree of protection (IP)

With lock

Thermal dissipation (Delta T = 20 K) according to IEC/TR 60890 [W]

Mounting method	Flush mounted (plaster)
Number of rows	2
Width in number of modular spacings	12
Type of cover	Door
Cover model	With notch
Transparent cover/door	No
Material housing	Plastic
Height [mm]	357
Width [mm]	283
Depth [mm]	106
Built-in depth [mm]	68
DIN-rail	No
With mounting plate	Yes
Extension possible	No
EMC-version	No
Colour	White
RAL-number	9003
Degree of protection (IP)	IP40
With lock	No
Thermal dissipation (Delta T = 20 K) according to IEC/TR 60890 [W]	30
