Ex9IZ 320—630 HV E Series Switch-Disconnector is designed solely for isolation and load breaking electrical circuits of DC electrical systems with maximum rated working voltage DC 1500 V.
These series can be used as a supporting product in the energy storage industry, such as battery clusters and converters. The product provides infrequent manual making and breaking as well as power isolation function.
Compliance with Standard:
IEC 60947-3

Datasheet Ex9IZ

Mounting instruction Ex9IZ 320

EU Declaration of conformity Ex9IZ 320

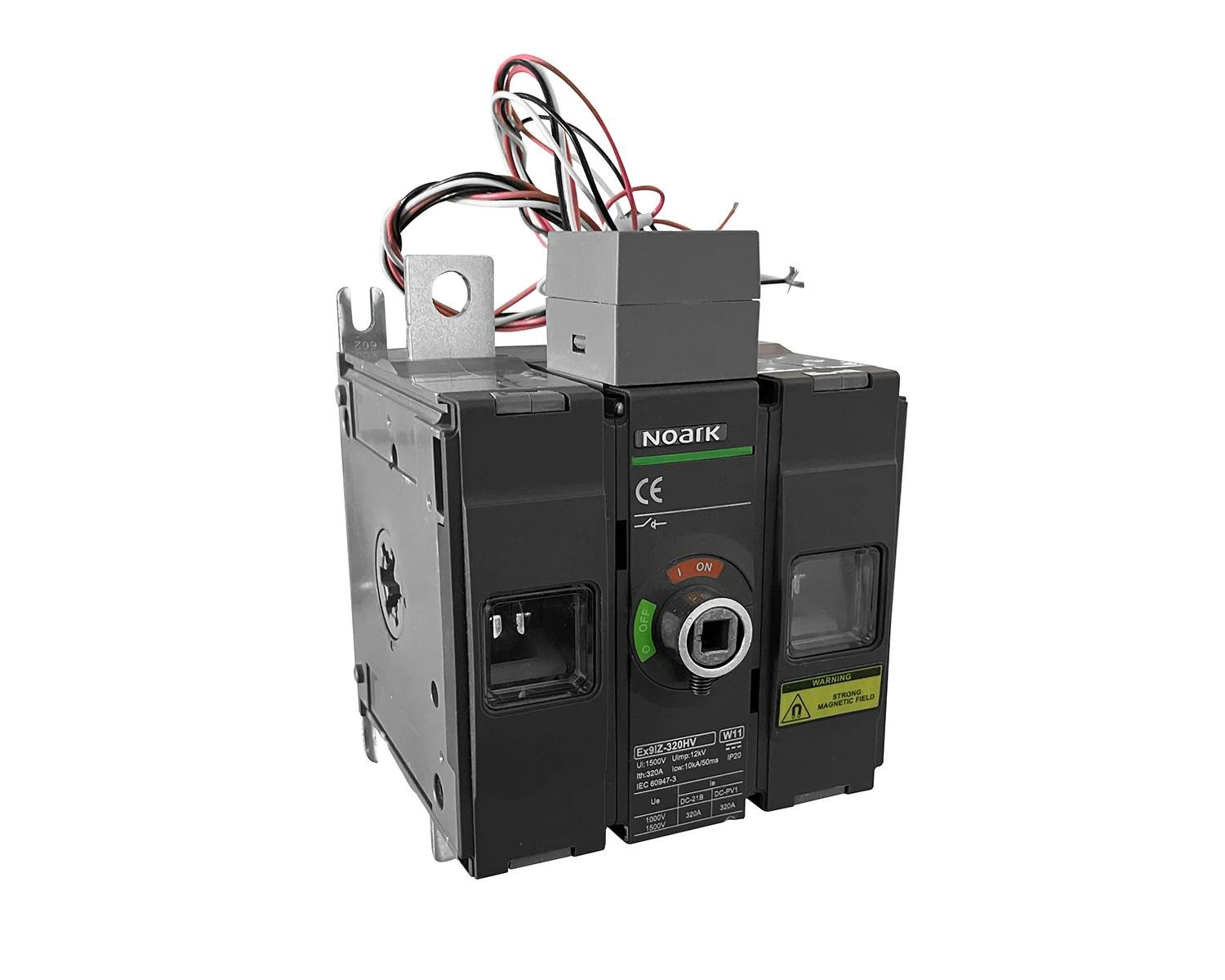

DC Rotary switch disconnector Ex9IZ-320HV W02 200A EU

Version as main switch

Version as maintenance-/service switch

Rated voltage DC [V]

Nominal rated current [A]

Number of poles

Device construction

Colour housing

Type of electrical connection of main circuit

With pre-assembled cabling

Degree of protection (IP), front side

Width [mm]

Height [mm]

Depth [mm]
