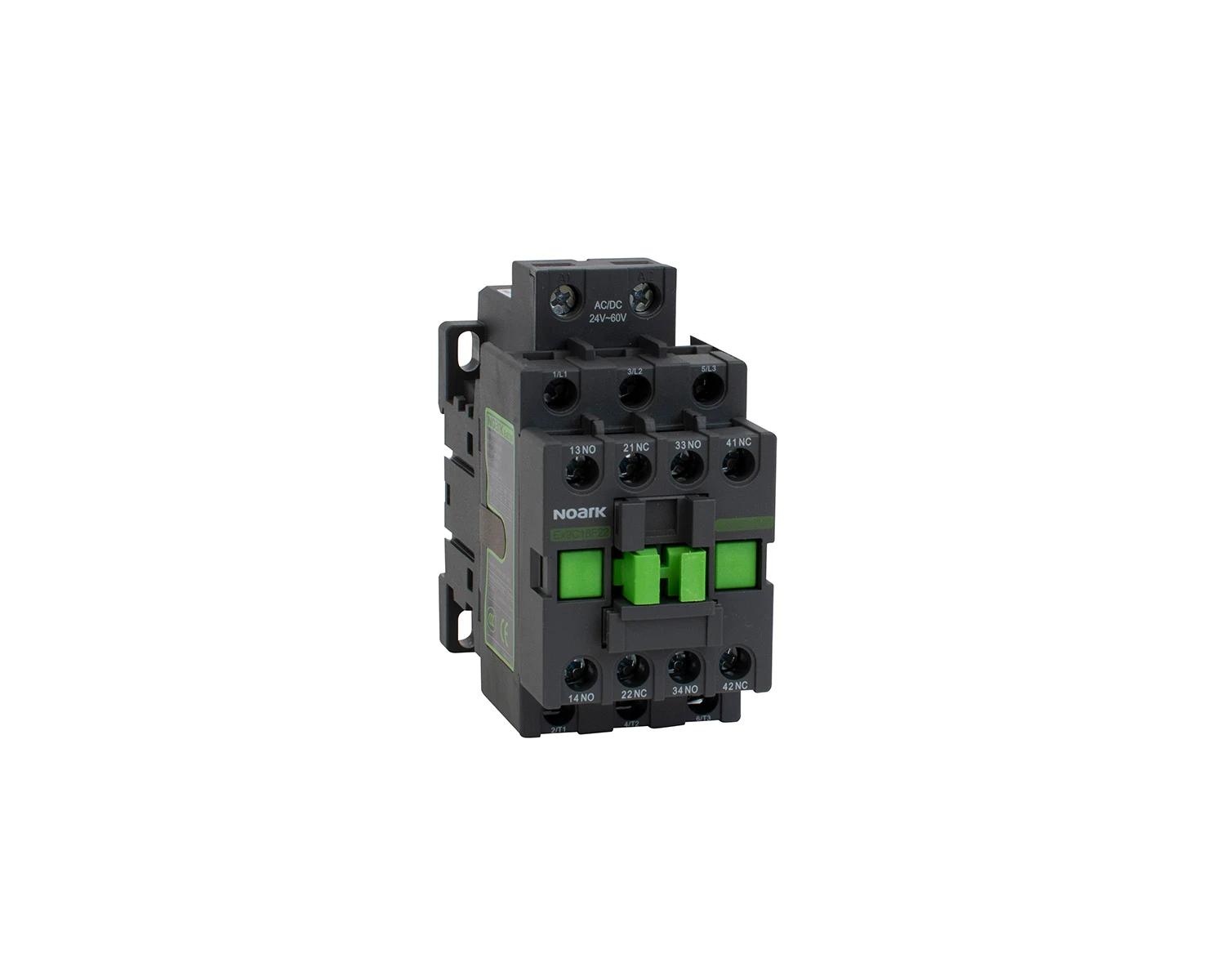

Wide-band contactor Ex9C09F 22 3P 24~60V AC/DC

116270

8592765162700

Wide band contactors Ex9CF are intended for various applications. These contactors can function over a wide range of control voltages and are available in three different ranges with AC/DC coil control voltage and four different frame sizes up to 100 A at 380V/400V AC3. This flexibility makes wide band contactors Ex9CF versatile and easier to integrate into various systems without the need for multiple types of contactors. All frame sizes share accessory auxiliary contacts. Ex9CF are compatible with wide range of accessories. Ex9CF can be combined with side mounted auxiliary contacts AX43 for left, right or both sides and for the front side either with auxiliary contacts AX2 or pneumatic delayed contacts TDD41/42.

Find store

Rated control supply voltage Us at AC 50 Hz [V]	24-60
Rated control supply voltage Us at DC [V]	24-60
Voltage type for actuating	AC/DC
Rated operation current Ie at AC-1, 400 V [A]	25
Rated operation current Ie at AC-3, 400 V [A]	9
Rated operation power at AC-3, 400 V [kW]	4
Rated operation current Ie at AC-4, 400 V [A]	9
Rated operation power at AC-4, 400 V [kW]	4
Modular version	No
Number of auxiliary contacts as normally open contact	2
Number of auxiliary contacts as normally closed contact	2
Type of electrical connection of main circuit	Cable clamp
Number of normally closed contacts as main contact	0
Number of main contacts as normally open contact	3
Power loss [W]	0.2
