AX-CHM20

116941
8592765169419

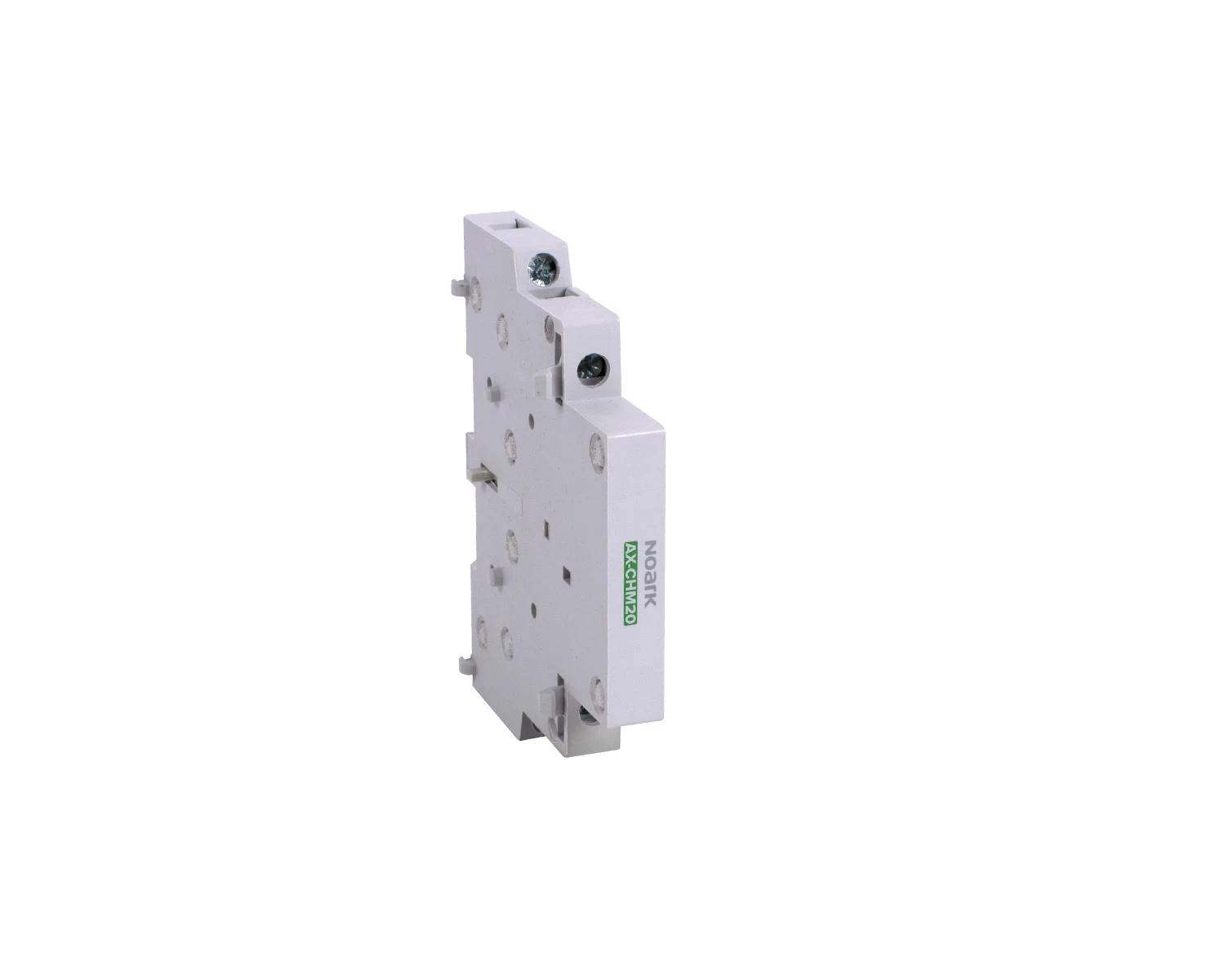

Auxiliary contact for Ex9CHM contactors, 2 NO contacts

Device fittingKontaktor/relej
Additional equipmentAuxiliary switch
Attached at deliveryNo
Assembly width (TE)0.5
Number of normally open contacts2
Number of normally closed contacts0
Number of change-over contacts0
Number of fault-signal switches0
Rated switch current [A]2
Nominal rated voltage [V]230
Control voltage typeAC/DC
With autotest for earth leakage functionNo
Suitable for max. number of poles main contact unit (total)4
Suitable for max. current main contact unit [A]63
Width in number of modular spacings0.5
