Installatiemagneetschakelaars Ex9CHH worden toegepast in modulaire verdeelinrichtingen in woningbouw en utiliteit. Ze zijn geschikt voor het schakelen en aansturen van verlichting, verwarming, ventilatie en pompen. De schakelaars werken geluidsarm en zijn geschikt voor omgevingen waar een laag geluidsniveau vereist is, zoals kantoren en woningen. Geschikt voor AC- en DC-stuurspanningen.

Datasheet Ex9CHH

Mounting instruction Ex9CHH

EU Declaration of conformity Ex9CHH

Catalogue Installation Devices

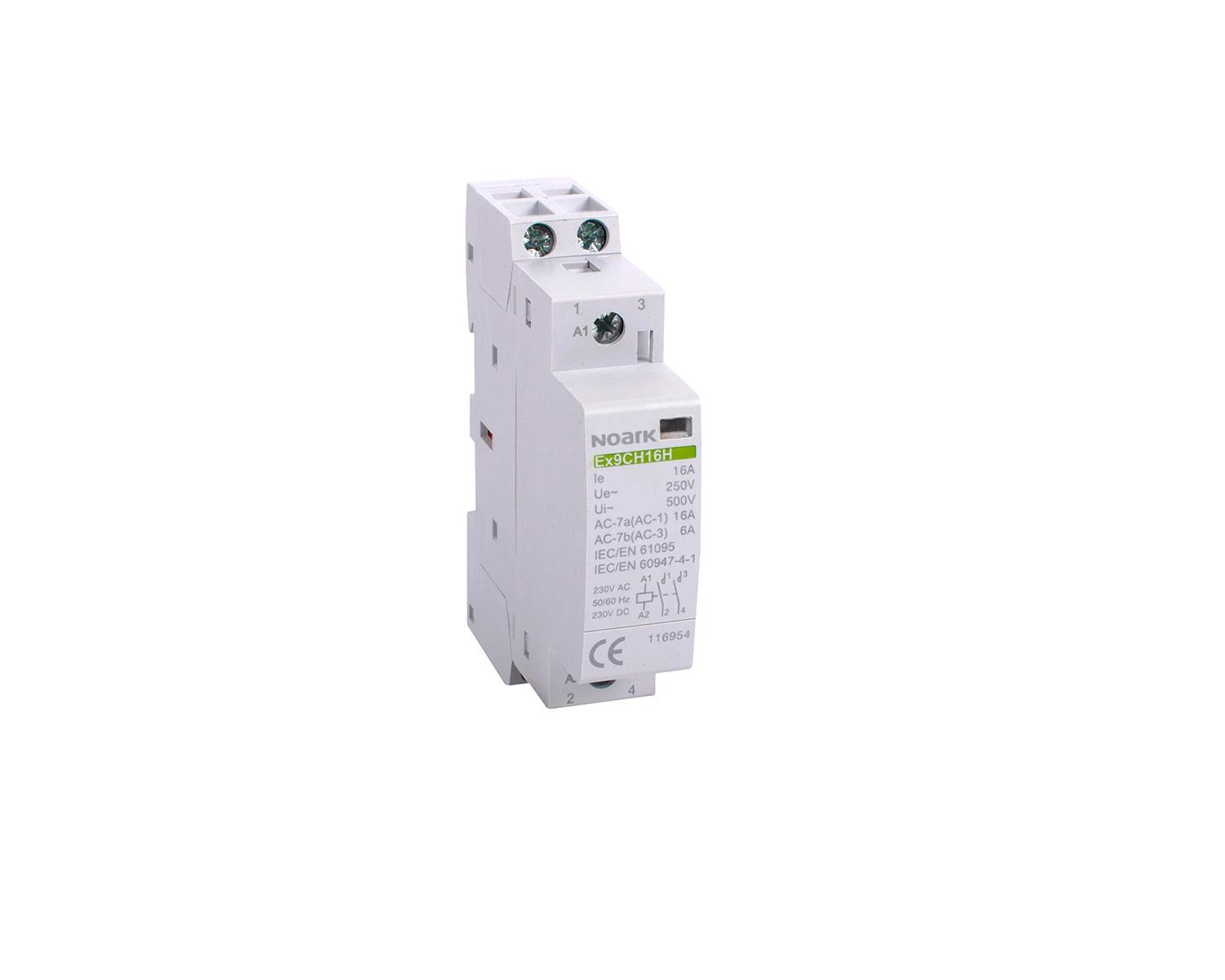

Geluidsarme installatiemagneetschakelaar Ex9CH16H 01 48V AC/DC

Rated operating voltage [V]

Rated operation current [A]

Utility category

Rated excitation voltage [V]

Voltage type (operating voltage)

Voltage type (excitation voltage)

Number of normally open contacts

Number of normally closed contacts

Slider for hand switch

Number of modular spacings

Built-in depth [mm]

Additional equipment possible

Degree of protection (IP)

Width in number of modular spacings

Power loss [W]

Rated operating voltage [V]	230 - 400
Rated operation current [A]	16
Utility category	1
Rated excitation voltage [V]	48
Voltage type (operating voltage)	AC
Voltage type (excitation voltage)	AC/DC
Number of normally open contacts	0
Number of normally closed contacts	1
Slider for hand switch	No
Number of modular spacings	1
Built-in depth [mm]	67.5
Additional equipment possible	Yes
Degree of protection (IP)	IP20
Width in number of modular spacings	1
Power loss [W]
