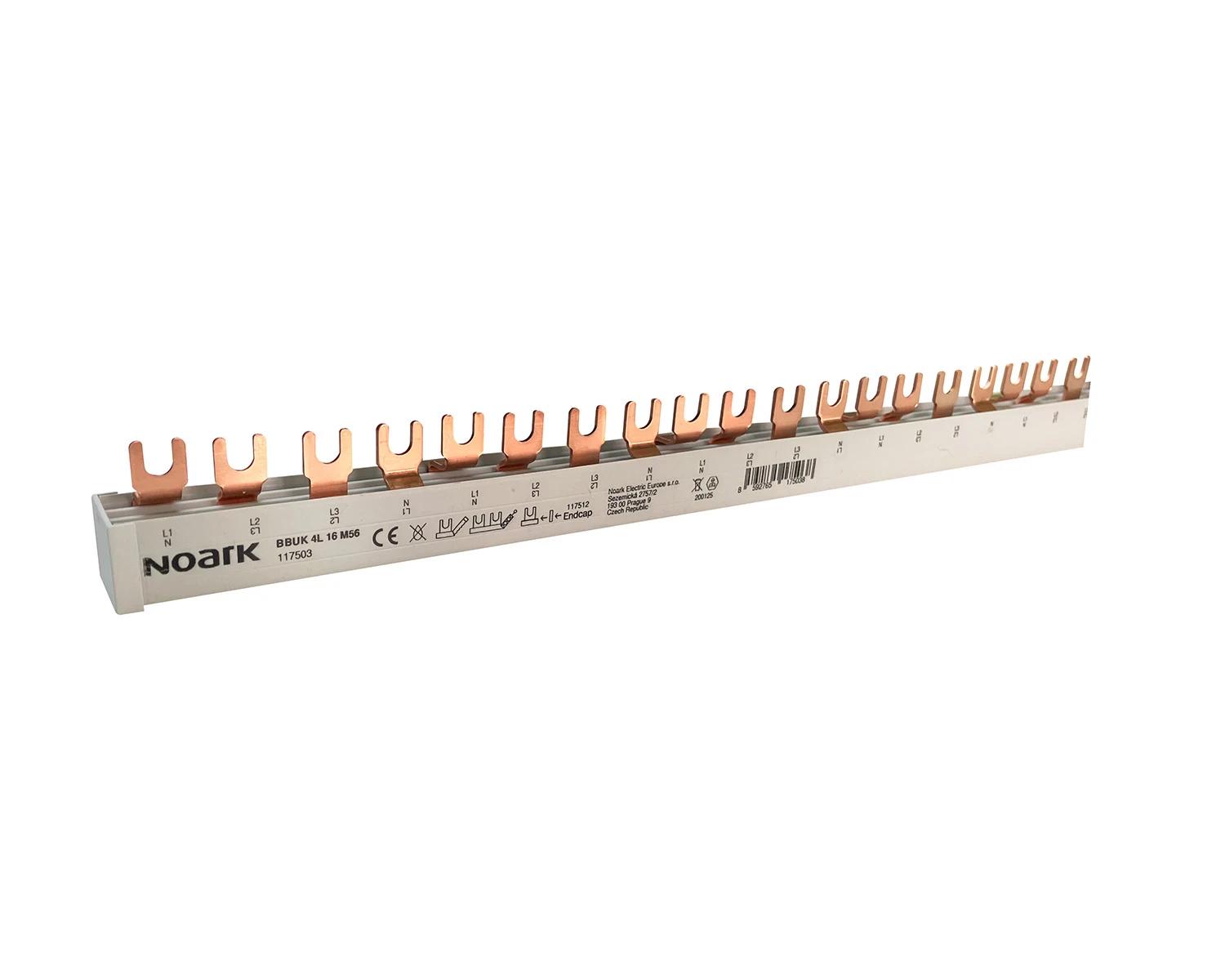

- BBUK 4L 16 M56
| Number of phases | 3 |
| Number of poles | 4 |
| Suitable for number of devices | 56 |
| Pitch dimensions | 18 |
| Cross section [mm²] | 16 |
| Length [mm] | 1010 |
| Number of modular spacings | 56 |
| Rated permanent current Iu [A] | 100 |
| Type of electric connection | Fork |
| Insulated | Yes |
| Max. rated operation voltage Ue [V] | 400 |
| Suitable for devices with N-busbar | Yes |
| Suitable for devices with auxiliary switch | No |
