• Tested according to IEC / EN 60947-4-1
• Four frame sizes with rated current up to 100 A at 380 V/400 V AC-3
• Coil control voltage:
  • 24 ~ 60 V AC/DC
  • 48 ~ 130 V AC/DC
  • 100 ~ 250 V AC/DC
• 3-pole version
• Wide range of accessories
• Mounting onto device (DIN) rail 35 or 75 mm (frame sizes 65 and 100) or onto panel

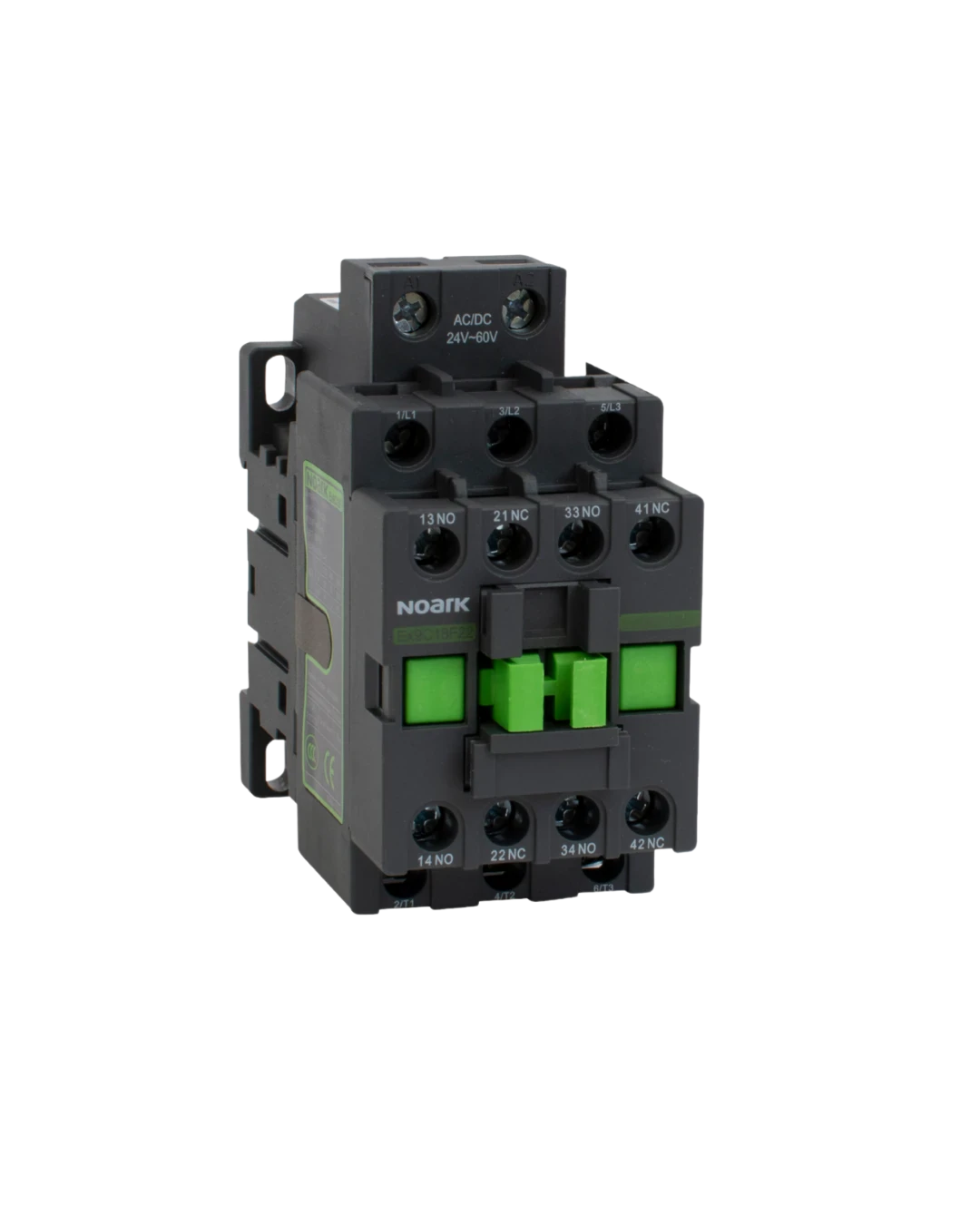

Wide band contactors Ex9CF are designed for a variety of applications. These contactors can operate across a wide range of control voltages and are available in three different voltage ranges (AC/DC coil control) and four different frame sizes, up to 100 A at 380/400 V AC-3. This flexibility makes Ex9CF contactors highly versatile and easier to integrate into various systems without the need for multiple contactor types.

Ex9CF contactors are compatible with a wide range of accessories. They can be combined with side-mounted auxiliary contacts AX43 on the left, right, or both sides, and on the front side with either AX42 auxiliary contacts or TDD41/42 pneumatic delayed contacts.

• Switch-Disconnector designed solely for insulation and load breaking electrical circuits
• Frame sizes 250, 630
• Rated operating current up to 630 A
• 3 and 4-pole versions
• Rated short circuit making capacity Icm 17 kA
• Rated voltage 1140 V AC maximum rated current of 630 A

Ex9I 250-630 HV Series Switch-Disconnector is designed solely for isolation and load breaking electrical circuits of AC 50 Hz/60 Hz electrical systems with maximum rated working voltage AC 1140 V.

These series can be used as supporting product in the energy storage industry, such as battery clusters and converters. The product provides infrequent manual making and breaking as well as power isolation function. Compliance with Standard: IEC 60947-3

• Internal Auxiliary Contacts: These are used to signal the status of the Switch disconnector (open or closed) to external monitoring or control systems.

• Terminal Cover: Designed to enhance safety by preventing accidental contact with live terminals and to ensure compliance with electrical safety standards.

• External Rotary Handle: Allows the Switch disconnector to be operated (switched on or off) from outside the panel, providing convenience and safety, especially in industrial environments.

• Miniature Circuit Breakers for Railway according to IEC/EN 60974-2, EN 45545 (fire protection on railway vehicles) and IEC/EN 61373 (rolling stock equipment - shock and vibration tests)
• AC version
• Ultimate Breaking Capacity Icu 6 kA or 10 kA
• 1 up to 4-pole versions
• Tripping characteristics B, C, D
• Rated current up to 63 A
• Rated operational voltage 230/400 V AC

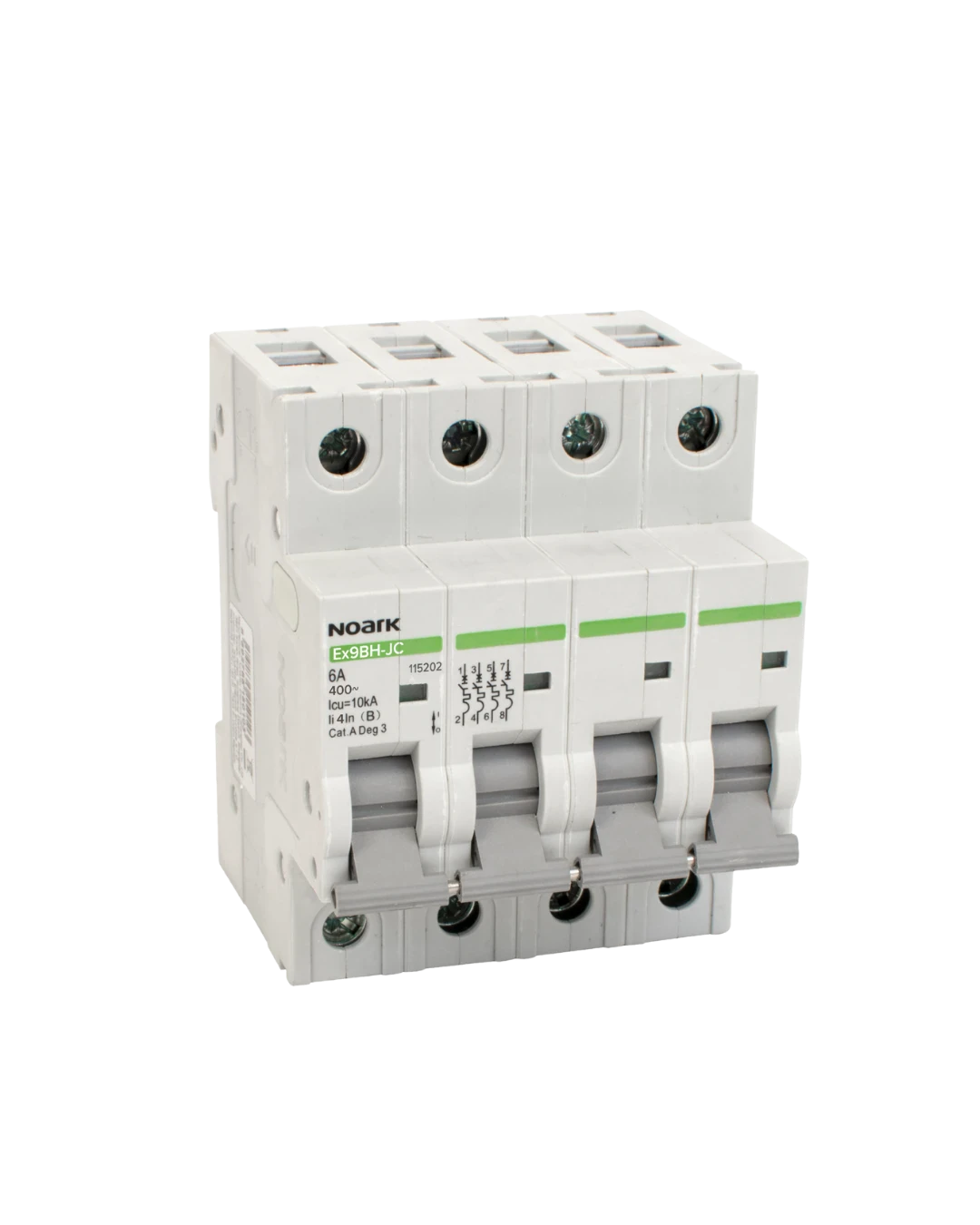

AC miniature circuit breakers Ex9B-JC are specifically designed for railway applications, meeting the stringent requirements of IEC/EN 60974-2, EN 45545 (fire protection on railway vehicles), and IEC/EN 61373 (rolling stock equipment - shock and vibration tests). Ex9B-JC version offers versatility across different railway systems. The AC version provides ultimate breaking capacities of 6 kA for Ex9BN-JC and 10 kA for Ex9BH-JC. Both versions are available with characteristics B, C, and D, ensuring reliable performance under diverse conditions.

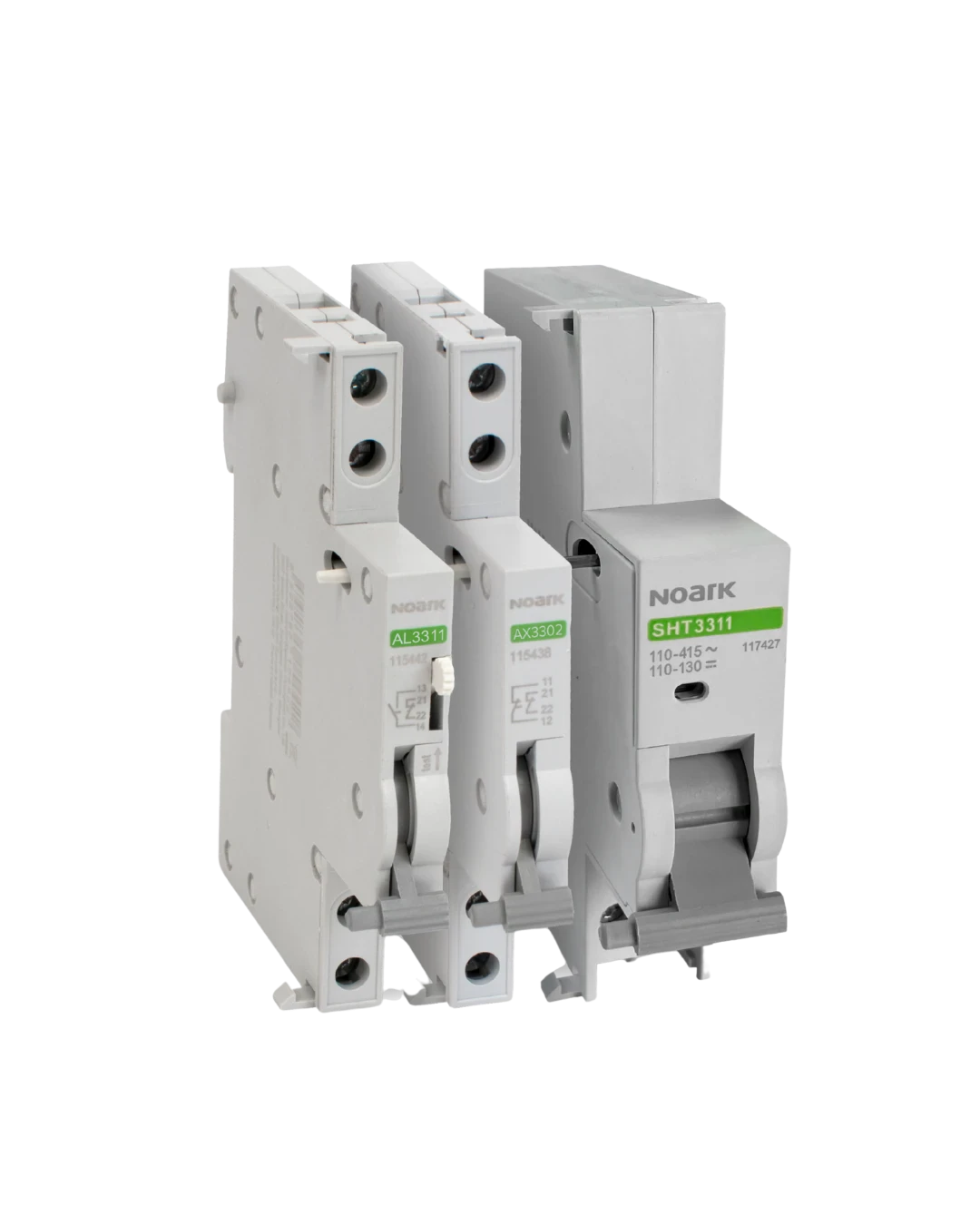

These circuit breakers can be equipped with accessories AX33 auxiliary contacts, AL33 signal contacts and SHT33 shunt trip release. This flexibility allows for customized configurations tailored to specific application needs, ensuring comprehensive protection and monitoring in critical railway environments.

• Operational voltage 110 V – 230 V AC/24 V DC (L+N)
• Protection functions: undervoltage, overvoltage, underfrequency, overfrequency and more
• FRT capability
• Monitoring of 1 and 3-phase grids for low and medium voltage
• Single-fault tolerance
• Cyclical self-test
• 5 Digital inputs available
• Country specific parameter sets or open setup

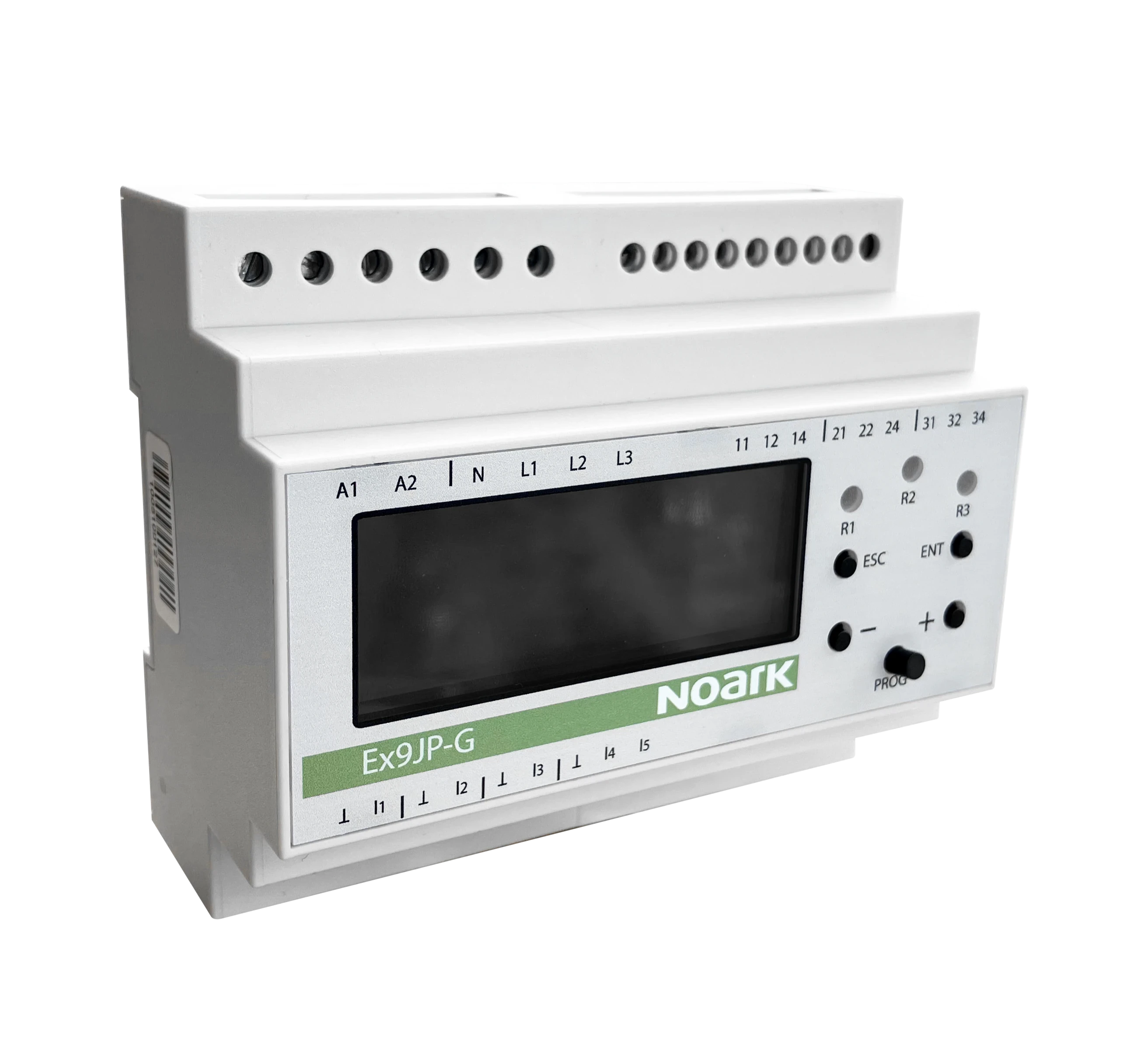

The monitoring relay Ex9JP-G is mainly used in photovoltaic installations for monitoring and protection of circuits connected to the power grid. This relay can provide protection against overvoltage, undervoltage, unbalanced phases, phase sequence and phase failure by analyzing voltage on each phase. It offers various combinations of protective functionalities with adjustable values for country specific standards or open setup.

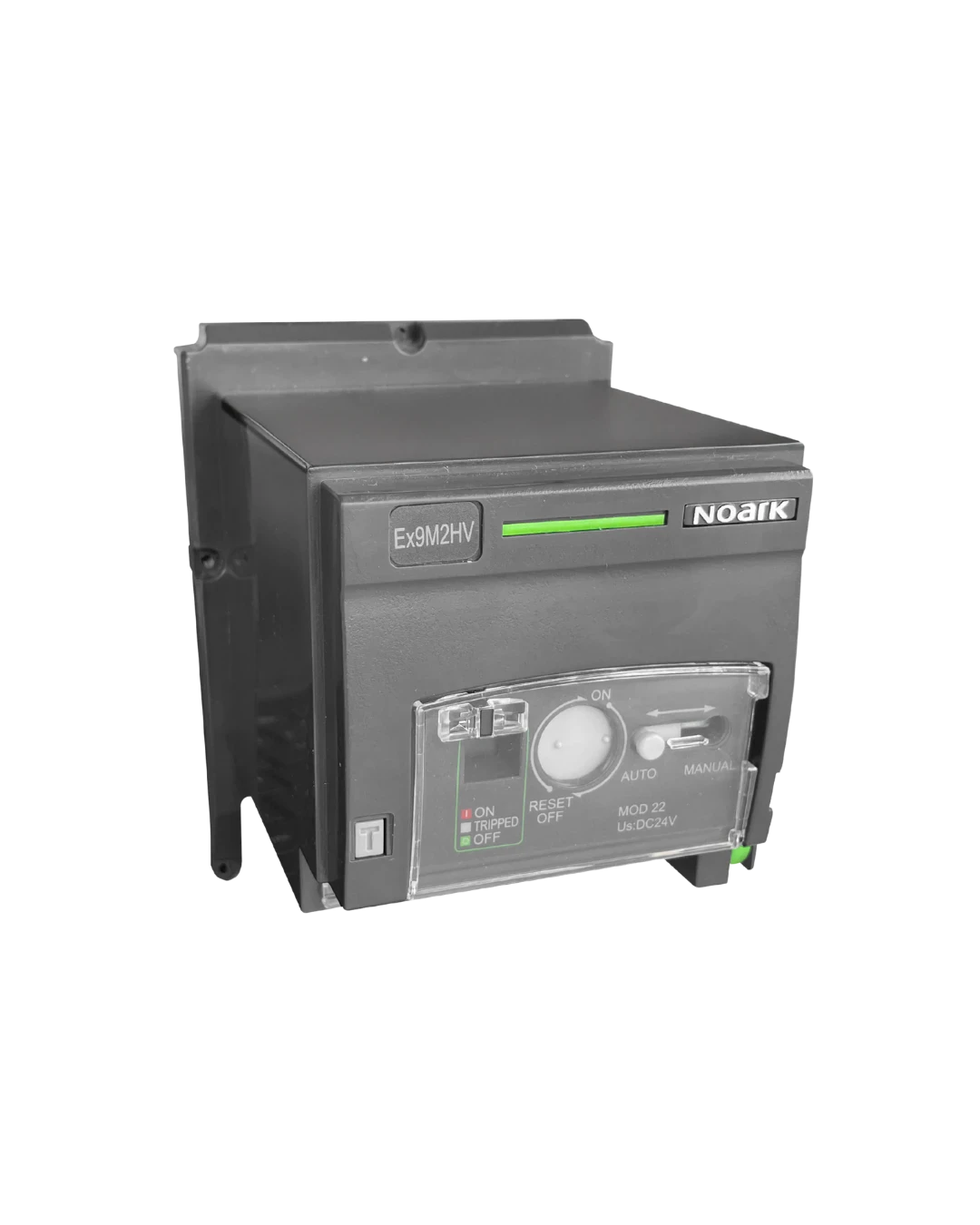

• Remote or manual control of circuit breaker (opening and closing)
• Clear status indication for circuit breaker ON/OFF and tripping
• IP40 protection rating
• Compatible only with Ex9MHV
• Rated operating voltage Us :
  • 110 V AC / 110 - 120 V DC
  • 220 - 240 V AC / 220 V DC
  • 380 V AC - 415 V AC
  • 24 V DC

The electric operating mechanism is an accessory designed for the remote automatic opening and closing of circuit breakers. It enables both manual and motor-driven operation, providing a convenient, reliable, and efficient solution for power control applications.
